Uhlmann BEC300 blister packaging line with Transnova-RUF case packer& palletiser

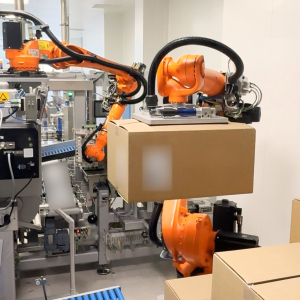

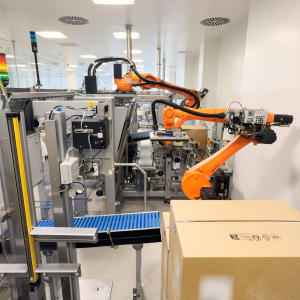

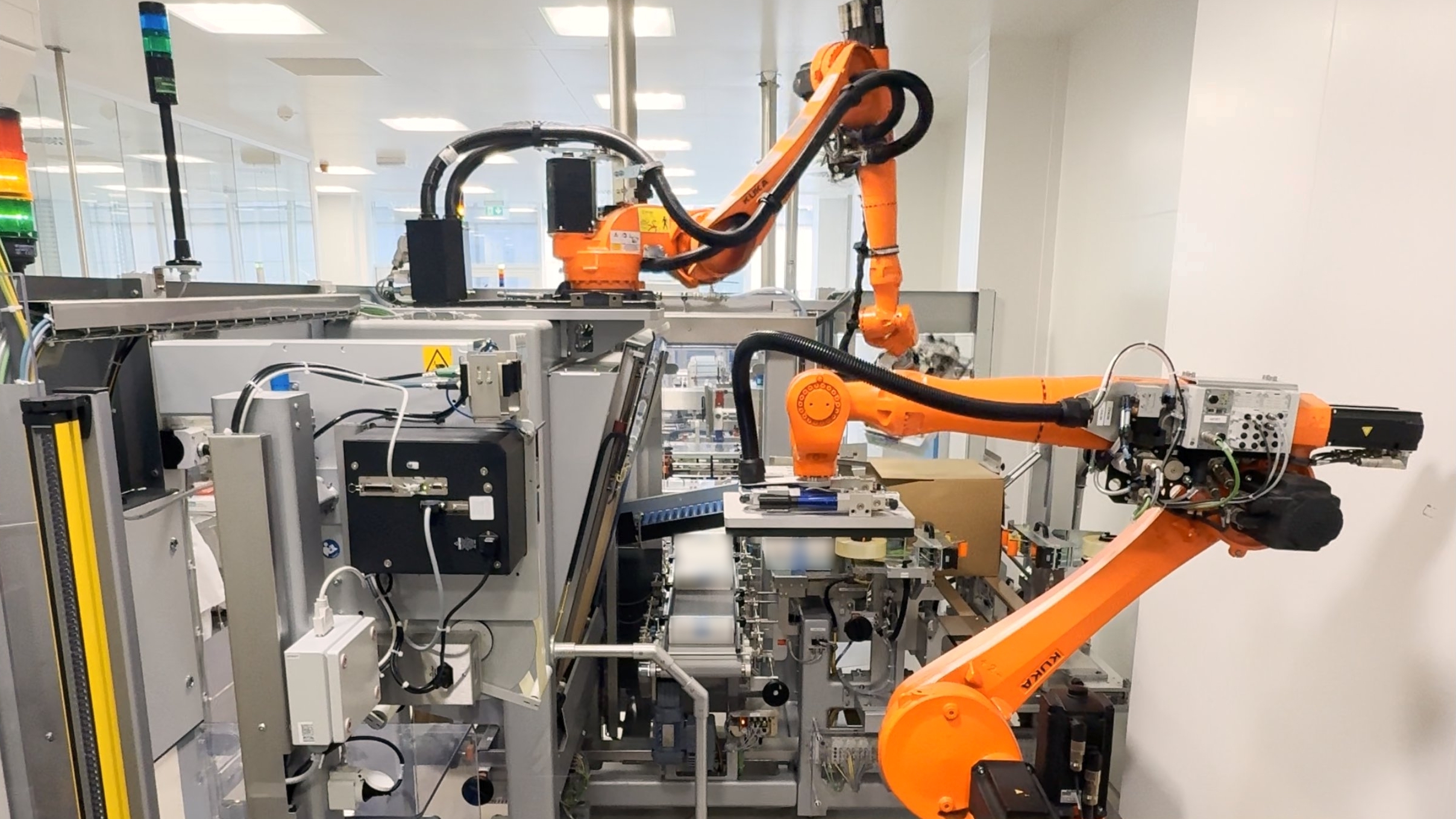

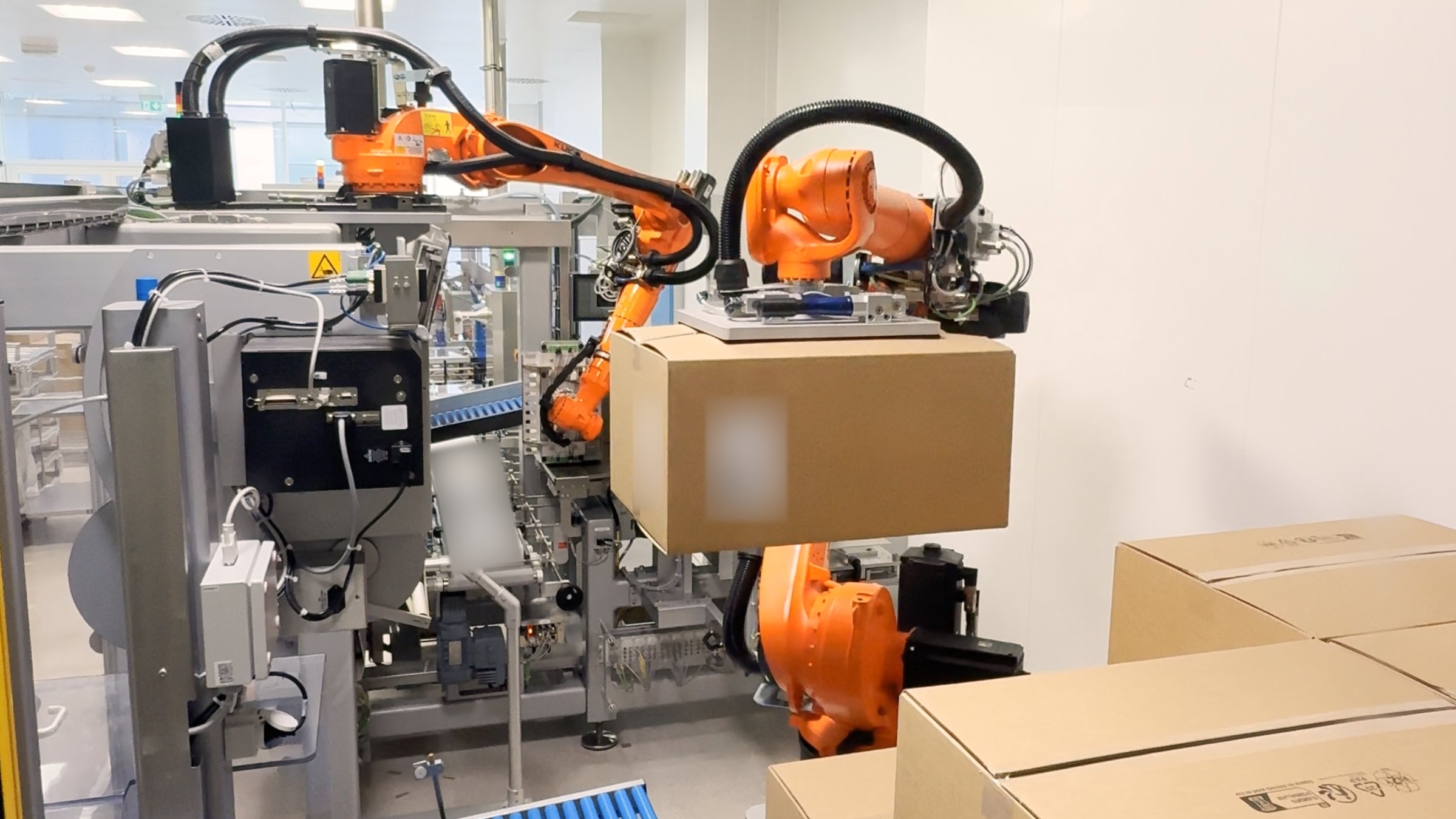

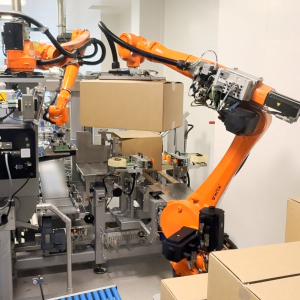

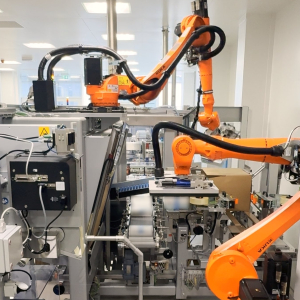

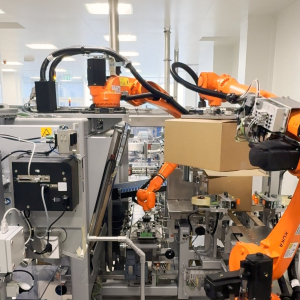

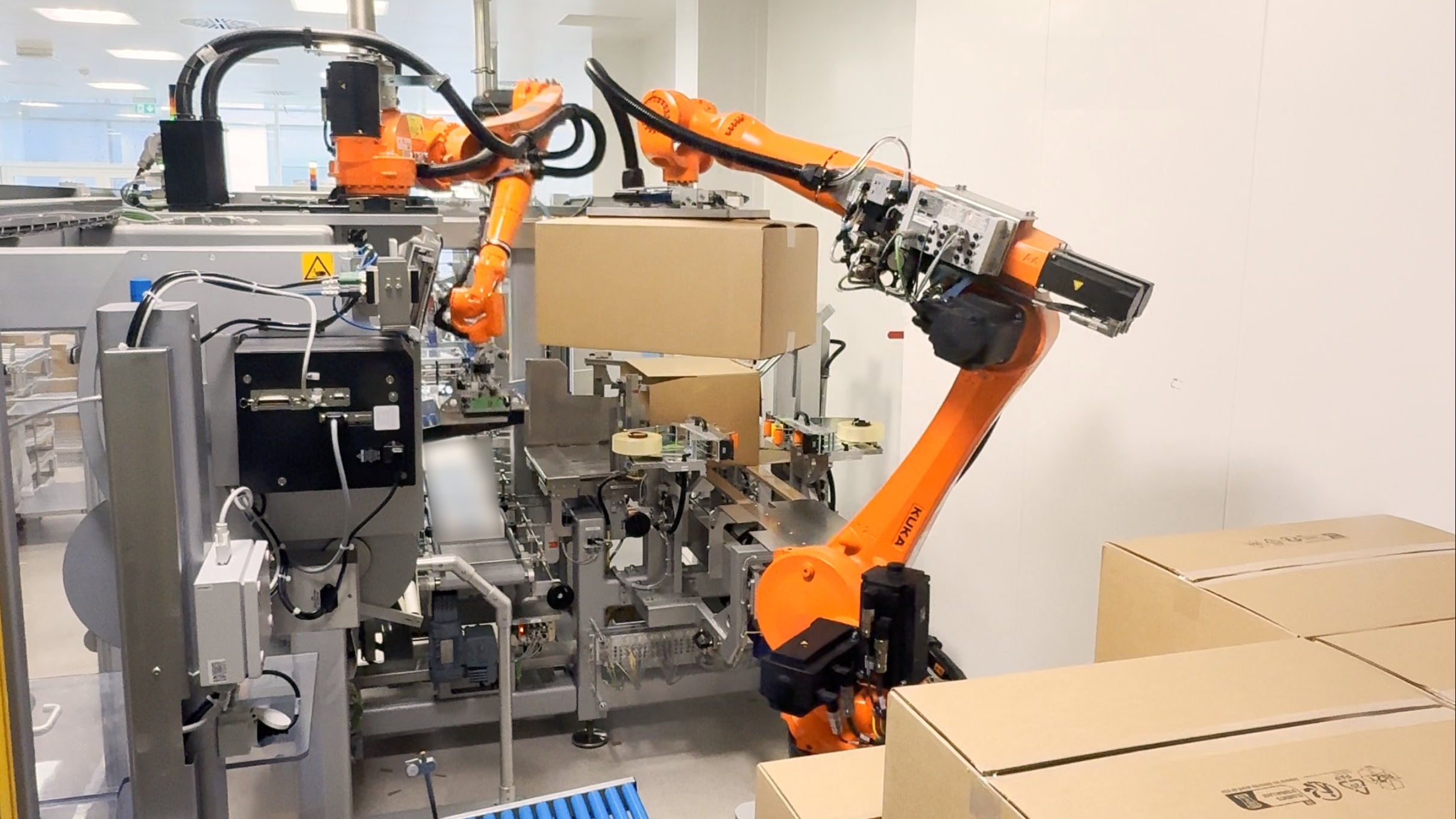

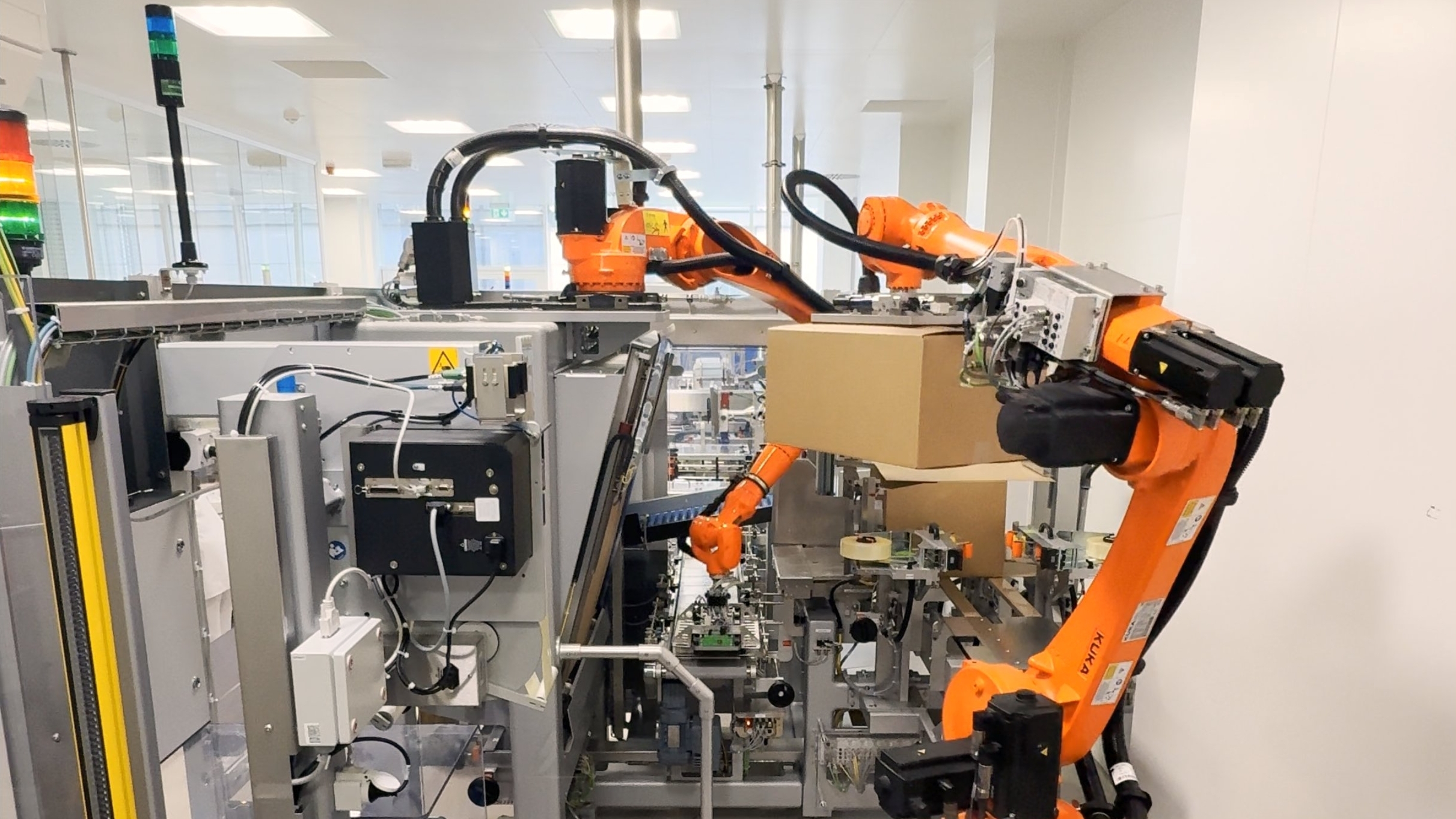

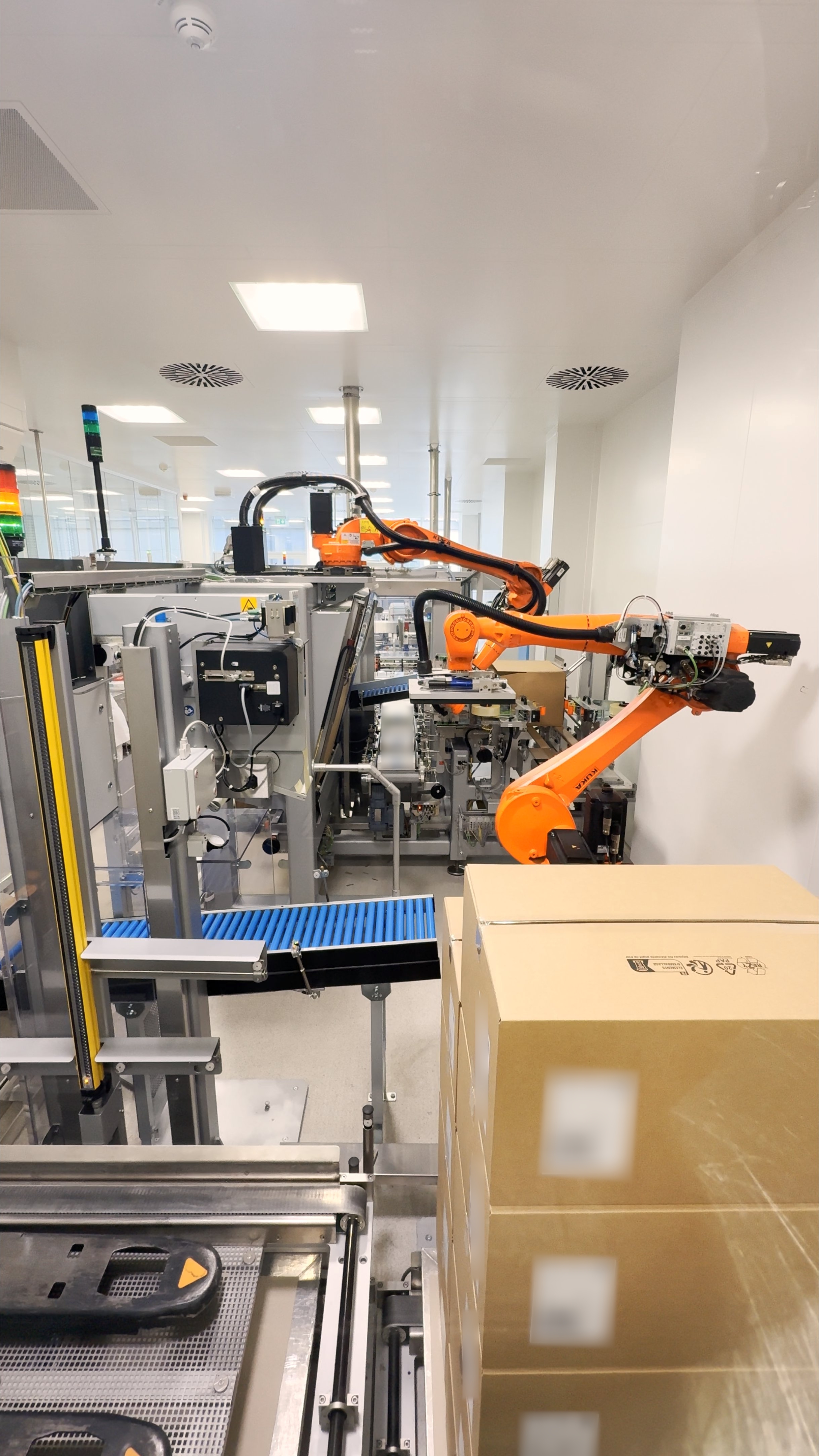

Uhlmann BEC300 blister packaging line comprising B1330 blister machine, format area max. 200 x 145 mm (index x width), forming depth max. 12 mm, film width max. 160 mm, max. reel diameter of thermoforming foil 600 mm, max. reel diameter of lidding foil 300 mm, with Hapa 230-T-1C-LR digital printing machine for foils and papers from reel, C2155 intermittend cartoning machine, max. carton format 115 x 100 x 170 mm (LxWxH), pitch 140 mm, max. blister stack height 85 mm, with GUK Cartonac 91 leaflet folder, Wolke m600 inkjet printer and downstream Transnova-RUF robot Flex Line RV-400 case packer & palletiser, packaging section with infeed conveyor, magazine, erecting/loading robot, carton closing station using self-adhesive tape at the bottom and top, carton discharge with labelling system (2 carton labels at a corner position of the carton), palletising with palletising conveyor (1-3), pallet lift and palletising robot (ALU-EURO pallet (1200 x 800 x 144 mm, loading height max. 1575 mm incl. pallet), max. 5 layers, max. 2.9 pallets/hour), electrical connection 230/400V/50Hz/3Ph, power consumption max. 10.7 kW, output up to 300 blisters/min, 150 cartons/min, 0.65 cases/min or 2.9 pallets/hour
