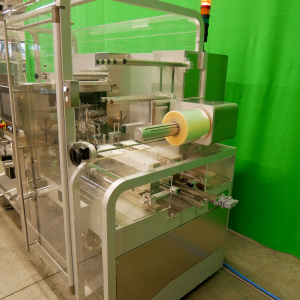

Pester PEWO-fold 1 Compact overwrapping machine for single cartons and carton collations

Pester PEWO-fold 1 Compact overwrapping machine for single cartons and carton collations in OPP-, PVC-, PE-materials, foil width from 90 mm to 230 mm, film thickness from 0.015 mm to 0.050 mm, maximum reell diameter 350 mm, reel core diameter 76 mm, size range min. 60 x 60 x 20 mm, max. 400 x 350 x 140 mm, carton infeed with turning star (turns the cartons by 90°), machine controlled using ELAU PacDrive C400, electrical connection 3x400V, V+N+PE/50Hz, power consumption 5.2 kW, current consumption 12.5 A, Operating pressure 4 bar, infeed/outfeed height approx. 900-950 mm, output infeed conveyor up to 150 cartons/min., output up to 60 cycles/collations per minute, machine floor space approx. 2970 x 1600 mm (LxW), machine height approx. 2150 mm, machine net weight approx. 1800 kg.
